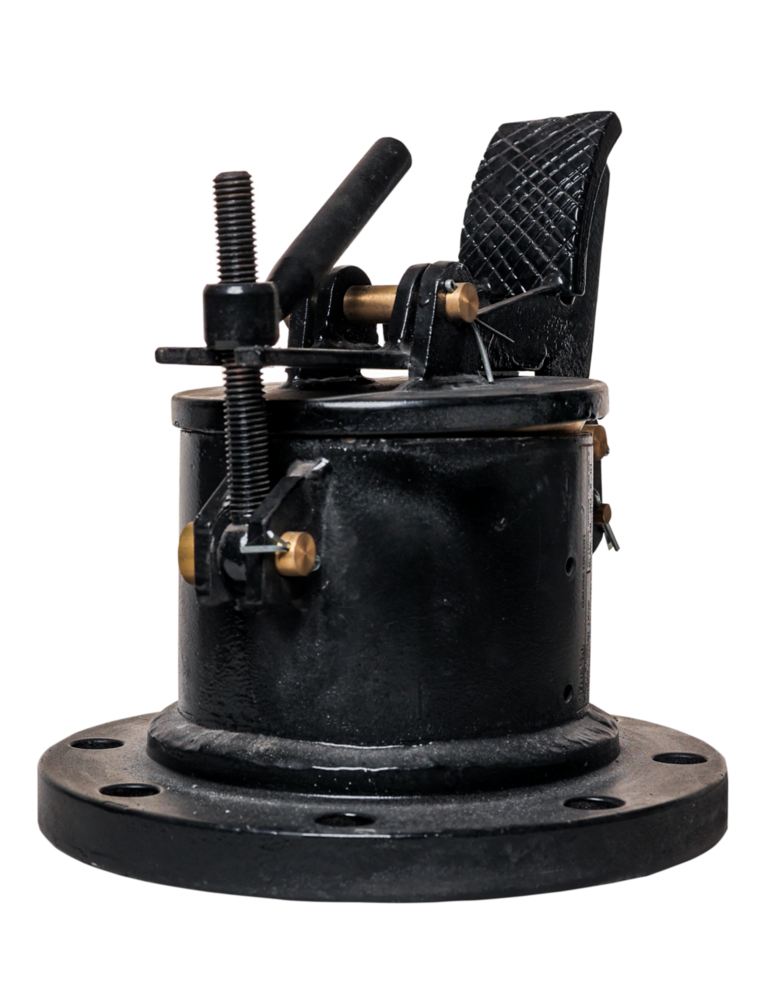

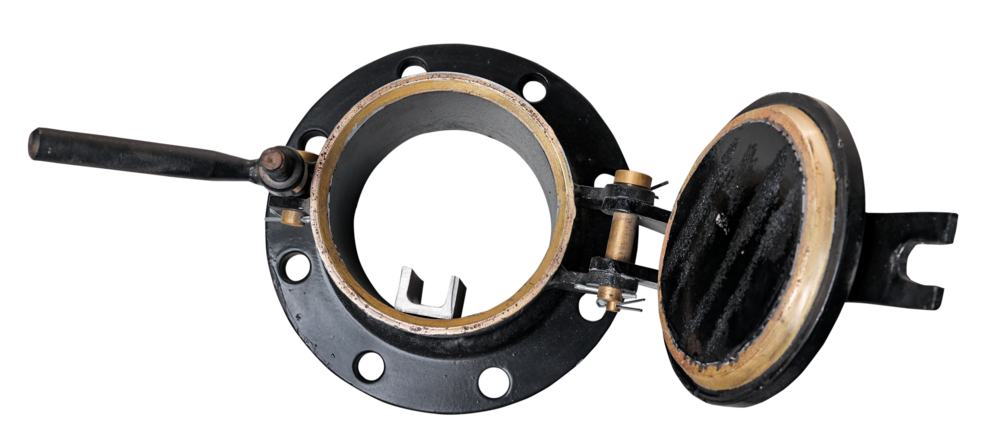

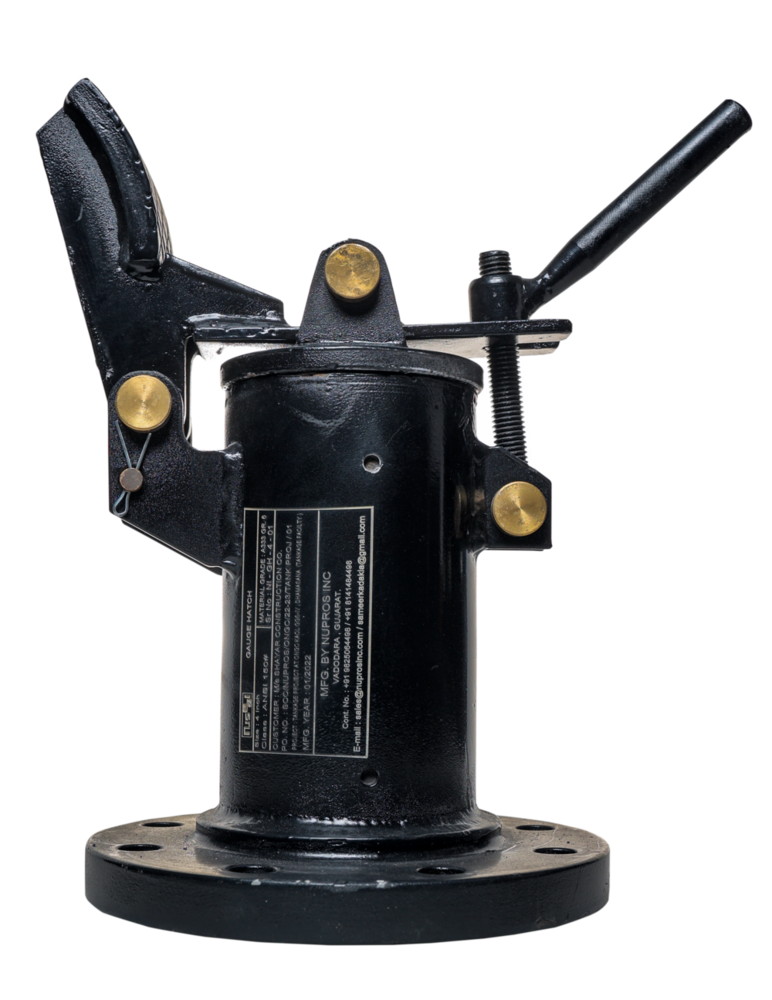

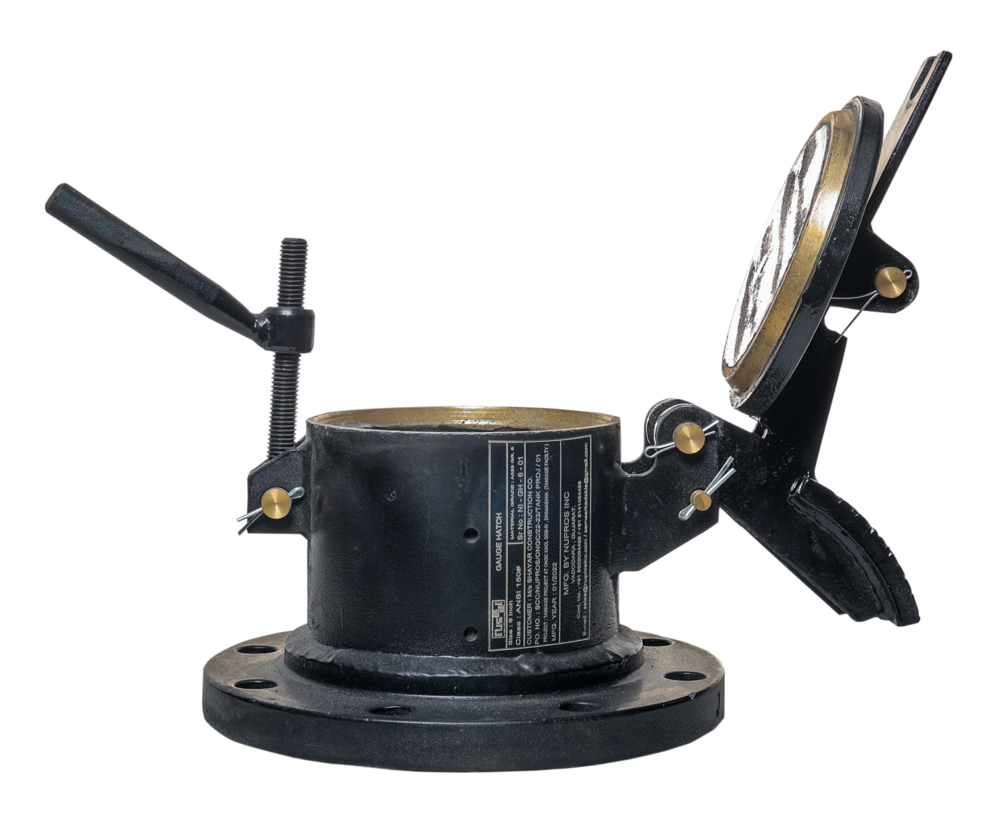

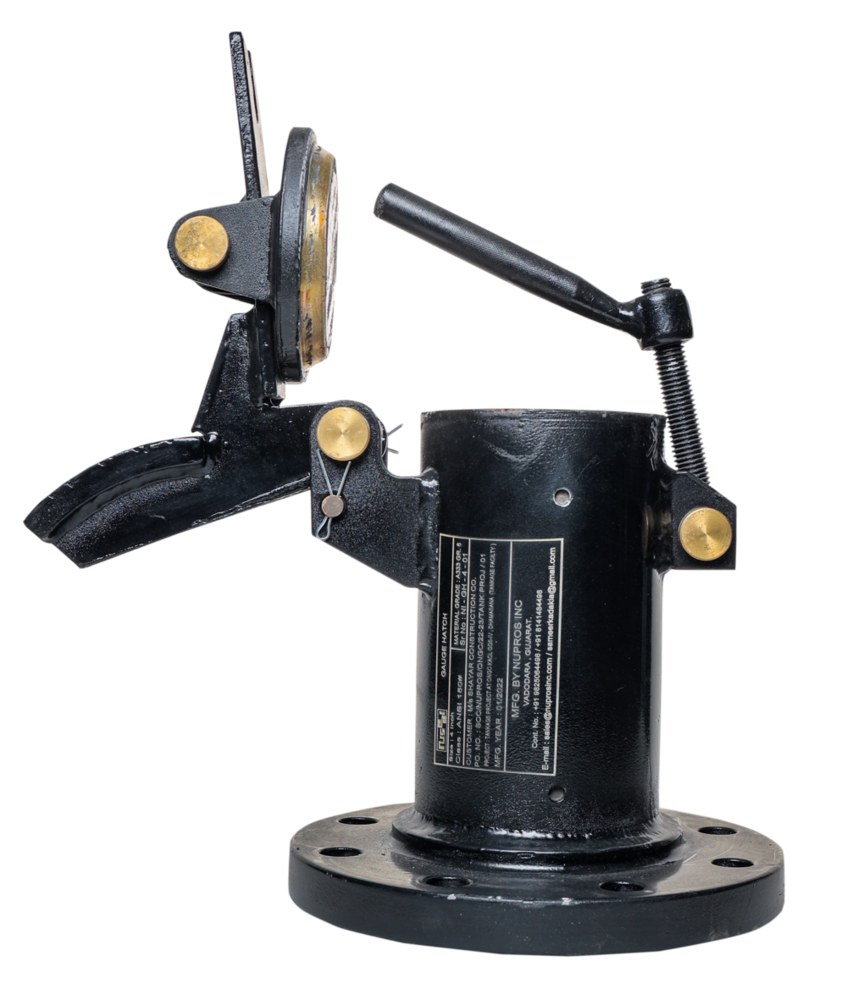

Lockable Gauge Hatches

Name: Lockable Gauge Hatches
Brand: NUPROS INC.
Price: 5000.00 INR
Availability: InStock

Price 5000.00 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

Lockable Gauge Hatches Specification

Thread
Flanged or Threaded (as per requirement)

Glass Size
Depends on Outer Size

Outer Size
4 (100mm), 6 (150mm), 8 (200mm), 10 (250mm) and 12 (300mm)

Measuring Range
Atmospheric Pressure to Maximum Design Pressure

Case
Cast Aluminum, Mild Steel, Stainless Steel (SS304/SS316)

Material
Aluminum, Mild Steel, Stainless Steel (SS304/SS316)

Working Presssure
Up to 10 Kg/cm or as per design

Seal Material
Neoprene, PTFE, EPDM, Viton (as required)

Grade
Industrial Grade

Application
Petroleum Storage Tanks, Chemical & Pharmaceutical Storage Tanks, Process Vessels

Lockable Gauge Hatches Trade Information

Minimum Order Quantity
10 Units

Supply Ability
100 Units Per Week

Delivery Time
1 Week

About Lockable Gauge Hatches

Since our inception, we manufacture and export high quality range of Lockable Gauge Hatches. These are manufactured by our experts in compliance with the industry norms using supreme quality materials. Our hatches are utilized as to avert vacuum and pressure loss within a tank as well as vapor decline in the procedure of estimation. Furthermore, this Lockable Gauge Hatches is available in a variety of specifications at industry leading prices.

Features of Lockable Gauge Hatches :

Easy to install
Robust construction
High strength

Our hatches are utilized as to avert vacuum and pressure loss within a tank as well as vapor decline in the procedure of estimation. These are made utilizing non-blazing aluminium bars. Our gauge hatches are the sort of systems, which are fully closed to environment. Besides, non-caustic materials are utilized to avert joints as well as are utilized as protection instrument when formation of elevated pressure induced in containers or vessels. All connection components are intended to be made in compliance with congenial diameter and flanges scopes from 1" to 2 feet.

In addition, our gauge hatch offers access for obtaining or gauging product specimen from storage vessels. These versions include an affirmative cover hold down that ensures a compact seal on vessels with inner weight of around 2000mm/WC. Additionally, the version also provides lock down ability as well as shall remain in the complete open place, which allows an individual to utilize both hands amid sampling or gauging process.

Manufacturing ranges: 1" to 24".

Product Specification

Brand	Nuseal
Material	SS 304 , SS 316 , Carbon steel
Size/Dimension	As per Client Requirement
Country of Origin	Made in India
Connection	Flange Type
Finish	ZN plated / Painted as per clients spec

Optimal Security for Industrial Storage Systems

Lockable Gauge Hatches are critical for safeguarding contents and permitting authorized measurement in storage tanks and process vessels. Designed to withstand both atmospheric and high-pressure conditions, they serve industries such as petroleum, chemicals, and pharmaceuticals. With a robust locking mechanism and high-quality sealing materials, these hatches prevent contamination, vapor loss, and unauthorized access, all while allowing easy inspection and sampling as needed.

Versatile Construction to Match Your Requirements

Available in outer sizes from 4 inches to 12 inches and constructed from materials like cast aluminum, mild steel, and stainless steel (SS304/SS316), these hatches suit numerous installation and process requirements. With flange or threaded connection options, each hatch can be specified according to your vessels standards. Selectable seal materials ensure chemical compatibility and pressure rating, guaranteeing reliable operations in diverse industrial environments.

FAQs of Lockable Gauge Hatches:

Q: How are Lockable Gauge Hatches installed on storage tanks or vessels?

A: Lockable Gauge Hatches can be installed using flanged or threaded connections, depending on the design specification of your tank or vessel. Installation methods ensure a secure fit and reliable seal, preventing vapor loss or ingress of contaminants.

Q: What is the purpose and benefit of using a lockable gauge hatch in industrial applications?

A: Lockable gauge hatches provide controlled access for inspection, sampling, and pressure measurement while preventing unauthorized entry and ensuring safety. They help maintain the integrity of storage contents and minimize operational risks.

Q: When should I select a specific case material such as aluminum, mild steel, or stainless steel for the hatch?

A: The choice of case material depends on the chemical compatibility with tank contents, corrosion resistance requirements, and operational environment. Stainless steel is ideal for corrosive processes, while aluminum or mild steel may be suitable for less aggressive conditions.

Q: Where can these lockable gauge hatches be effectively used?

A: These hatches are designed for use on petroleum, chemical, and pharmaceutical storage tanks as well as process vessels. Their robust design makes them suitable for any application requiring secure, pressure-rated access points.

Q: What is the typical process for choosing the correct seal material for these hatches?

A: Seal material selection depends on the stored substances chemical characteristics and operating temperature. Options such as Neoprene, PTFE, EPDM, and Viton are available to ensure long-term sealing under various process conditions.

Q: How does the measuring range of atmospheric pressure to maximum design pressure affect usage?

A: This range allows the hatches to be used for both vented atmospheric tanks and pressurized vessels, providing versatility to handle a wide array of operational scenarios up to 10 Kg/cm or customized per vessel design.
