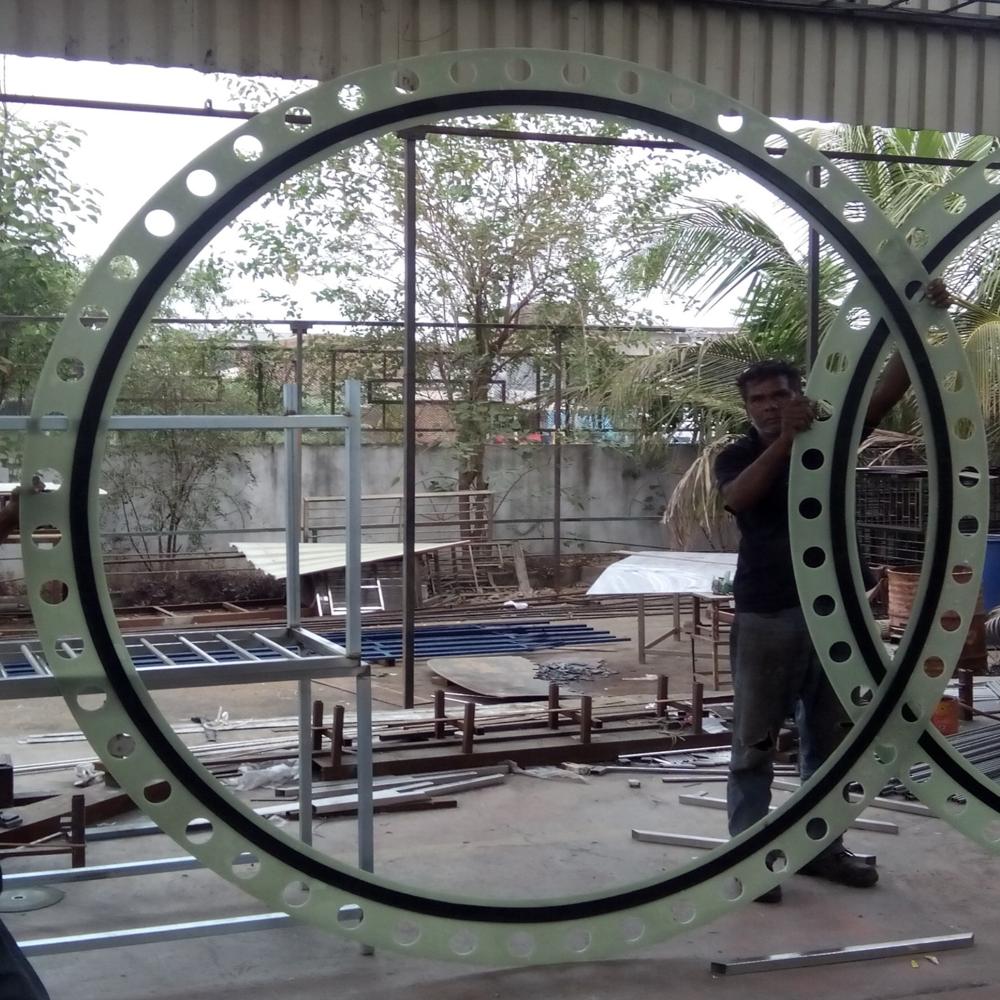

Nuseal C S Insulating Gasket Kit

Get a Price/Quote

MOQ : 1 Set

Nuseal C S Insulating Gasket Kit Specification

Working Temperature
-45C to +135C

Vaccum Range
Up to 1 x 10^-9 mbar

Hardness
Shore D 85 - 90

Gasket Coefficient
0.29

Standard
API 6A/6D, ANSI, DIN, BS

Temperature Resistance
Up to 180C

Pressure Resistance
Up to 250 bar

Medium
Water, Oil, Gas, Chemicals

Material
Gasket - Neoprene & Epoxy, Rings - Stainless Steel/Phenolic

Shape
Round

Outer Ring
Steel / Epoxy

Inner Ring
Phenolic / Epoxy

Size
Up to 48 inch

Application
Pipeline Flange Insulation

Thickness
3 mm

Nuseal C S Insulating Gasket Kit Trade Information

Minimum Order Quantity
1 Set

Supply Ability
100 Sets Per Week

Delivery Time
1 Week

Main Domestic Market
All India

About Nuseal C S Insulating Gasket Kit

Nuseal CS Insulating Gasket Kit is widely used to provide resistance against cracking and over compression. It is also used to isolate the flange so that there is no electrical continuity to prevent the stray current flow in pipelines. This gasket is available in various size and pressure bearing capacities. Nuseal CS Insulating Gasket Kit is extensively used between two different metal flanged joints so that there is no galvanic attack due to the difference between the electro negativities of different materials. This product find its application in water, oil/gas, and the piping systems of various industries.

The Nuseal CS insulating kits are suitable for all services with pressure class upto ANSI 2500. Its unique pressure activated sealing requires less torque to seal.
These are reusable gasket too.
The MOC of Core is SS 316/L, Monel, Inconell, Super Duplex.
Manufacturing Range - 1/2" to 44"

Superior Insulation and Safety

Nuseal C S guarantees outstanding electrical isolation, thanks to its dielectric strength of 16 kV/mm. Combined with self-extinguishing flame retardancy and less than 1.5% water absorption, this kit enhances safety for all pipeline environments. Its compression set of 10% at 100C ensures structural integrity under thermal stress. The kit meets industry standards and offers protection against corrosion, making it ideal for critical applications.

Flexible and Durable Design

Engineered for durability, the Nuseal C S Gasket Kit comes in both full face and raised face designs, accommodating flange sizes up to 48 inches. Its robust material composition of neoprene and epoxy gaskets with phenolic and steel rings, and Shore D hardness rating of 85-90, guarantee reliable performance even under harsh conditions. The kit withstands extreme temperatures and supports high pressure, ensuring consistent operation throughout its 15+ year service life.

FAQs of Nuseal C S Insulating Gasket Kit:

Q: How does the Nuseal C S Insulating Gasket Kit enhance pipeline flange insulation?

A: The kit utilizes a combination of neoprene and epoxy gasket with phenolic or steel rings, delivering high dielectric strength and excellent corrosion resistance. This ensures effective isolation and protection of flanges in oil, gas, water, and chemical pipelines.

Q: What standards and sizes are supported by this gasket kit?

A: Nuseal C S complies with API 6A/6D, ANSI, DIN, and BS standards and fits flange sizes up to 48 inches, making it adaptable for a wide range of industrial applications.

Q: When should the gasket kit be replaced in service?

A: Given its service life of over 15 years and durable design, replacement is generally required only after signs of wear, aging, or failure. Regular inspections during maintenance cycles help determine the optimal replacement timing.

Q: Where can the Nuseal C S Insulating Gasket Kit be used?

A: It is suitable for use in water, oil, gas, and chemical pipelines, especially where flange insulation is critical for operational safety and longevity. Its resistance to high pressure, temperature, and vacuum makes it versatile across various industries.

Q: What is the process for installing the gasket kit?

A: The kit is installed during flange assembly. After ensuring flanges are clean, the full face or raised face gasket is placed between them, tightened to the recommended bolt torque (up to 400 Nm), ensuring proper alignment and sealing as per standard procedures.

Q: How does the packaging ensure traceability and quality?

A: Each kit is shrink-wrapped and includes a traceable batch number, allowing for easy identification and quality control throughout logistics and installation.

Q: What benefits does using the Nuseal C S Insulating Gasket Kit offer?

A: Users experience improved operational reliability, enhanced corrosion protection, extended service life, and compliance with leading industry standards, reducing maintenance costs and downtime.
