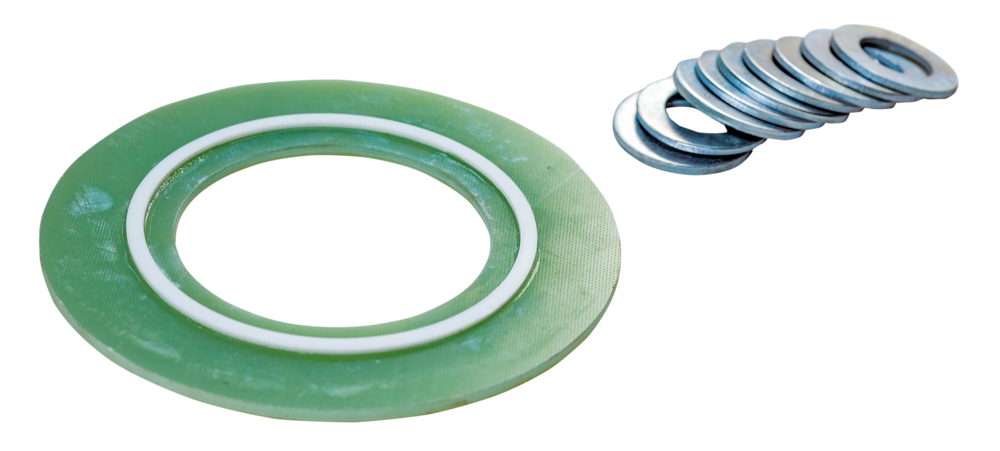

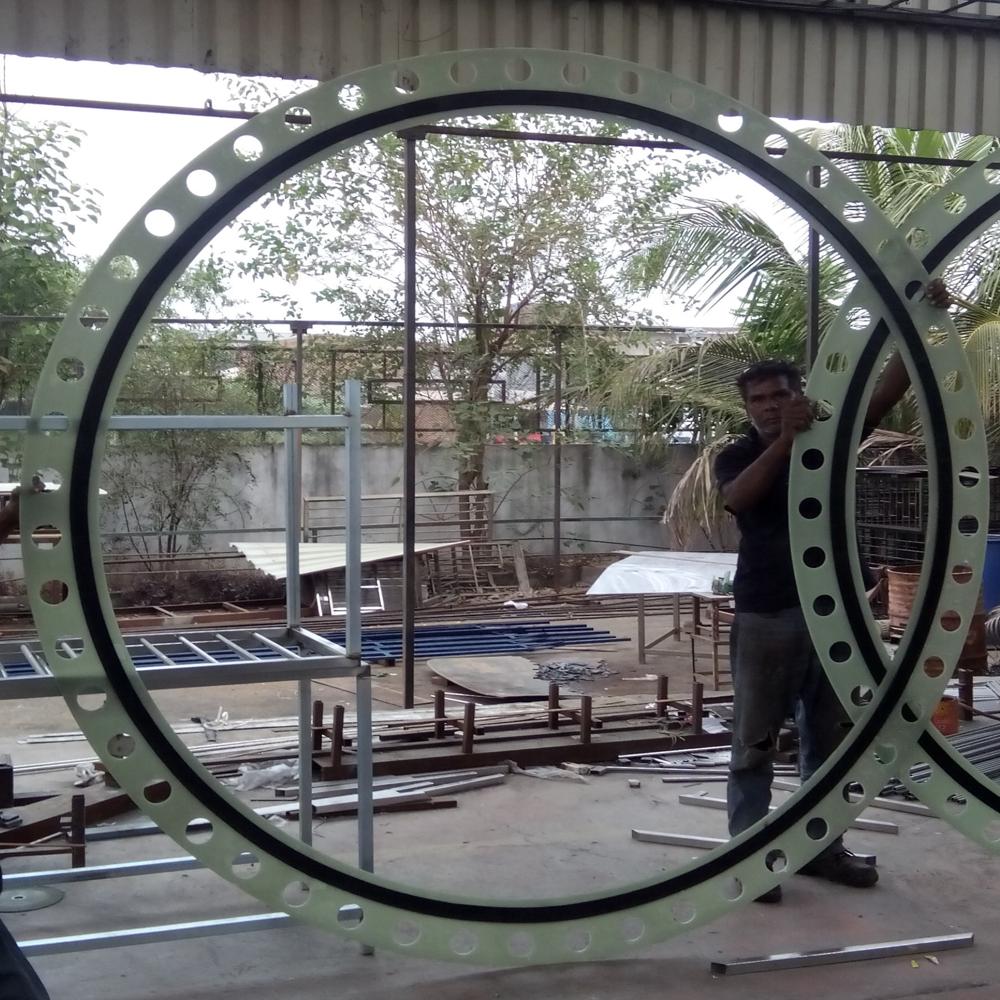

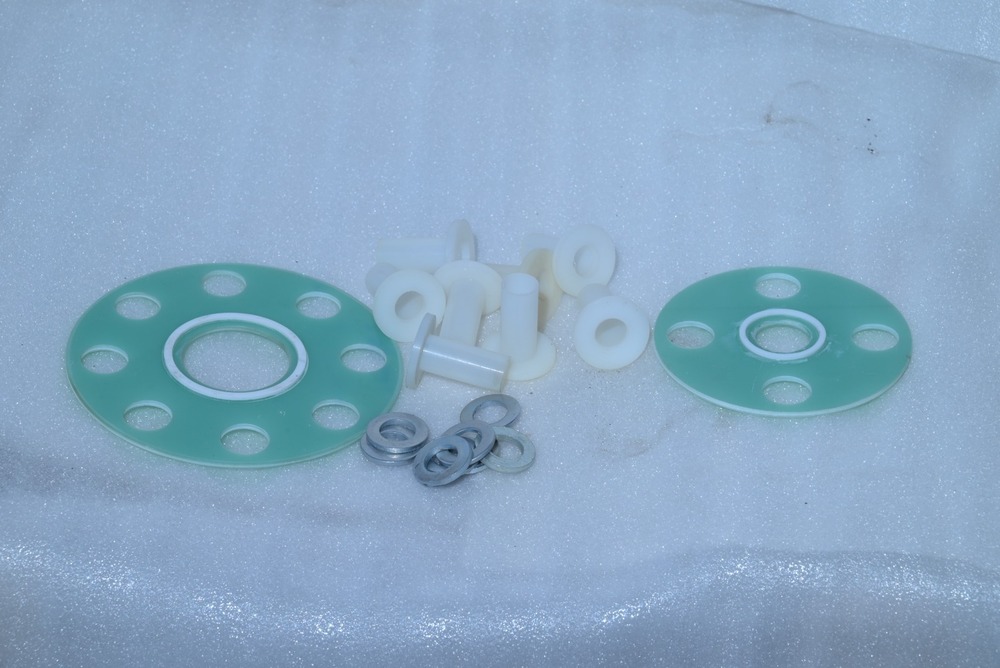

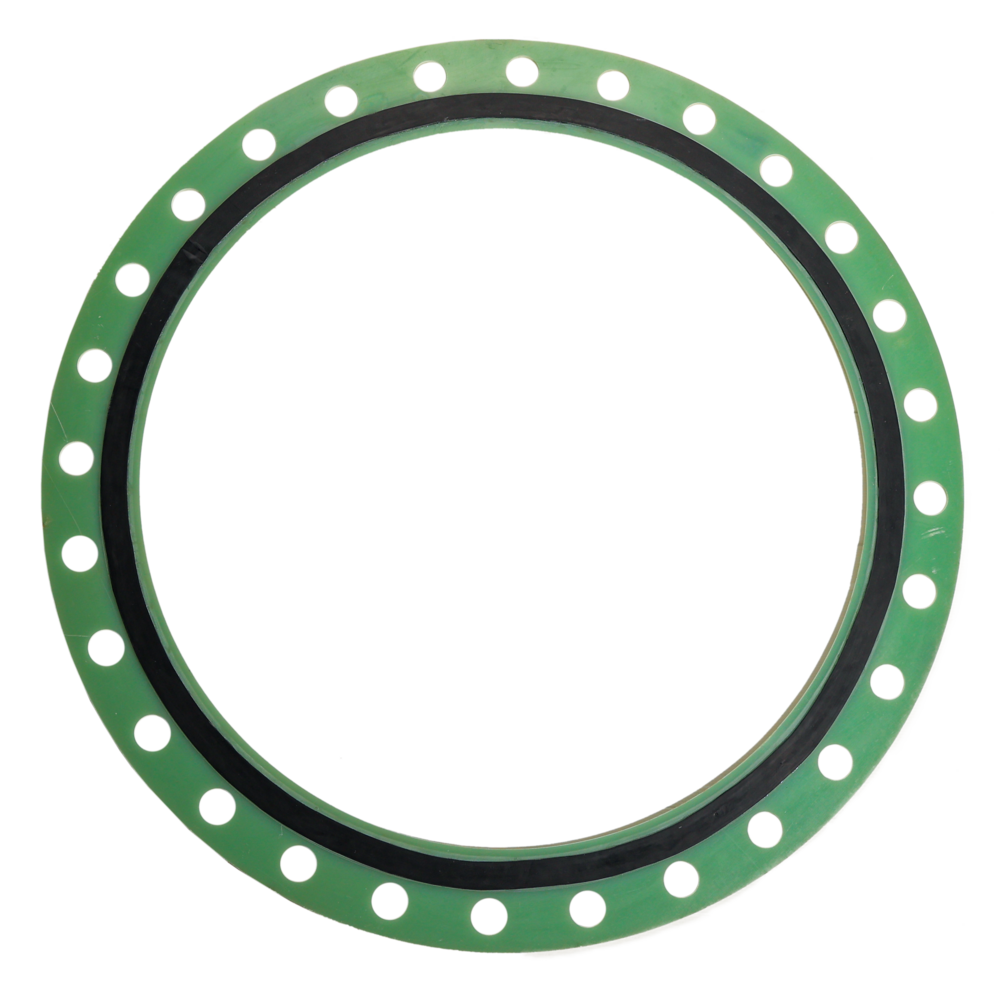

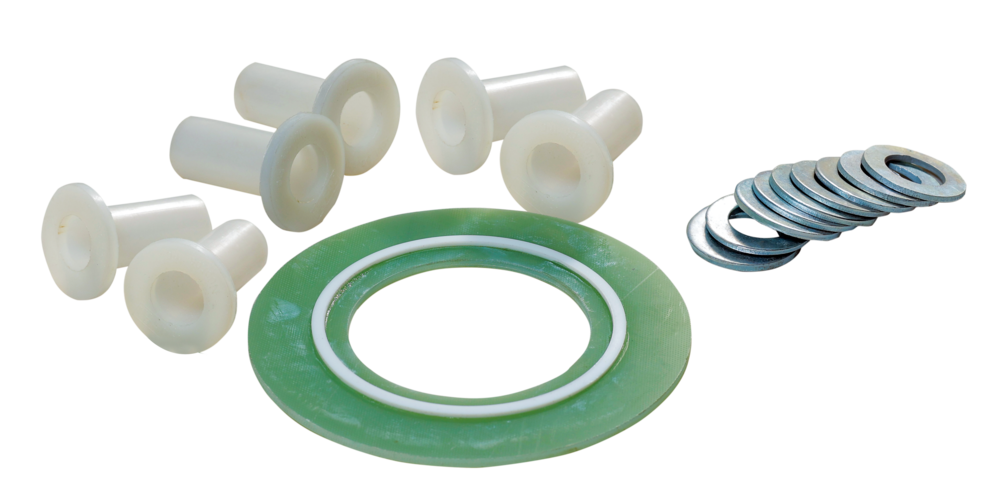

Flange Insulating Gasket Kits

Get a Price/Quote

MOQ : 1 Set

Flange Insulating Gasket Kits Specification

Hardness
Shore D 805

Pressure Resistance
Up to 2500 psi (Class 2500#)

Temperature Resistance
Up to 150C

Gasket Coefficient
0.15

Vaccum Range
Full vacuum

Standard
ANSI, ASME, DIN, JIS

Medium
Oil, Gas, Seawater, Water, Chemicals

Material
Phenolic, G10 Epoxy, Stainless steel, Neoprene

Shape
Round

Outer Ring
Neoprene faced phenolic or Stainless Steel

Size
1/2 inch to 60 inch (custom sizes available)

Application
Used for isolating flanges to prevent galvanic corrosion and electrical continuity in piping systems

Thickness
3 mm

Flange Insulating Gasket Kits Trade Information

Minimum Order Quantity
1 Set

Supply Ability
100 Sets Per Week

Delivery Time
1 Week

About Flange Insulating Gasket Kits

Owing to help of our expert business acumen & large shipping base, we are considered as one of the well-known manufacturers and exporters of Flange Insulating Gasket Kits. We procure tested quality materials from authentic vendor base for manufacturing these Gasket Kits as per industry specific guidelines. Broadly used for sealing and electrical insulation, these breathers are offered to our clients without any delay. Available in different specifications, Flange Insulating Gasket Kits can be customized to meet the exact preferences of the clients.

Features of Flange Insulating Gasket Kits

Can be used with electrically isolate flange joints

Prevent the flow of electrostatic charge along pipelines

Easy to use

Superior Isolation and Corrosion Prevention

Designed to prevent galvanic corrosion, these gasket kits provide reliable electrical insulation across flanged joints. By using advanced materials such as G10 epoxy and phenolic, they assure long-lasting performance in harsh environments, safeguarding your piping infrastructure from costly damage and downtime.

Versatile and Customizable Specifications

Available in a variety of sizes from 1/2 inch up to 60 inch, and with the option for custom dimensions, these kits are suitable for a multitude of industrial applications. Whether your system requires oil, gas, seawater, water, or chemical transport, the gaskets offer high compatibility and adaptability for your projects unique demands.

Robust Design for Extreme Conditions

With excellent temperature resistance up to 150C and pressure resistance up to 2500 psi, these gasket kits are a robust solution even for high-stress environments. Their round shape, consistent Shore D hardness, and full vacuum capability ensure secure sealing and operational stability across a broad spectrum of applications.

FAQs of Flange Insulating Gasket Kits:

Q: How do flange insulating gasket kits prevent galvanic corrosion in piping systems?

A: Flange insulating gasket kits isolate the metal surfaces of connected flanges, preventing direct electrical contact between dissimilar metals. By interrupting the galvanic path, they stop stray currents that cause galvanic corrosion, thus preserving pipeline integrity.

Q: What materials are these gasket kits made from and why are they chosen?

A: The kits use materials like phenolic, G10 epoxy, stainless steel, and neoprene, chosen for their electrical insulation properties, chemical resistance, mechanical strength, and durability, making them highly effective in diverse and harsh environments.

Q: When should I use a flange insulating gasket kit in my operation?

A: Use these kits whenever you need to isolate flange jointsespecially in systems exposed to oil, gas, seawater, chemicals, or waterto prevent corrosion and ensure safe electrical continuity, particularly in critical or high-value infrastructure.

Q: Where can the gasket kits be installed?

A: They are suitable for installation in piping systems conforming to standards such as ANSI, ASME, DIN, and JIS. With their customizable sizing, they fit a variety of industrial applications, from petrochemical plants to marine systems and utility networks.

Q: What is the installation process for these insulating gasket kits?

A: Installation involves aligning the gasket between two flanges, ensuring surface cleanliness, and gradually tightening the bolts to the recommended torque. This ensures a uniform seal and effective electrical isolation for long-term protection.

Q: How does using these kits benefit overall system performance?

A: They extend the service life of pipelines by preventing corrosion, reduce maintenance costs, and enhance system safety by maintaining electrical isolation. This translates to improved reliability and cost savings over time.

Q: Can these kits be used in high-pressure and high-temperature environments?

A: Yes, these gasket kits are engineered for use in demanding conditions, handling pressures up to 2500 psi and temperatures up to 150C, making them fit for a wide range of challenging industrial applications.
